Esophageal cancer, a gastrointestinal cancer, is placed eighth and sixth for incidence and mortality among all types of cancer, respectively (1). The symptoms of early-stage esophageal cancer patients often go undetected, and in moderate patients dysphagia is a typical symptom (2). As a result, the majority of patients are in the middle or late stages of esophageal cancer by the time they are admitted to hospital (3). The extremely high mortality and morbidity of esophageal cancer pose huge medical challenges. In clinical treatment, the most common therapy for patients with esophageal cancer is the combination of cisplatin with 5-fluorouracil, although the therapeutic effects are often unsatisfactory, largely because of multidrug resistance (4). Therefore, the discovery of an effective way to reduce the multidrug resistance of tumors by enhancing the sensitivity of cancer cells to chemotherapeutic drugs has become one of the hot spots in the field of cancer treatment research.
Betulinic acid (BA) is a lupine pentacyclic triterpene compound extracted from white mulberry bark. It is reported to possess a variety of pharmacological properties, with antitumor, antimalarial, antiviral, anti-inflammatory, and antioxidant effects (5-7). Studies have indicated that BA has a strong inhibitory effect on esophageal cancer cells (8), and that it could be used in combination with antitumor drugs to induce tumor cell pyroptosis and inhibit tumor proliferation (9). BA is expected to be used as a synergist in combination with chemotherapy to avoid the development of multidrug resistance and enhance the therapeutic effect of antitumor drugs. Currently, no research has been carried out on the combination of BA and cisplatin to treat esophageal cancer. This study aimed to explore the effects of BA combined with cisplatin on the proliferation, dryability stemness, pyroptosis and growth of esophageal carcinoma cells in a nude mouse xenograft model.
Test drugs and main reagents
BA (B8936) was purchased from Sigma-Aldrich (Sigma-Aldrich, USA), with a chemical formula of C30H48O3, a molecular weight of 456.70, and a purity ≥98%. Cisplatin (C2210000) was purchased from Sigma-Aldrich (USA), with a chemical formula of Pt (NH3)2Cl2 and a molecular weight of 300.05. Roswell Park Memorial Institute 1640 medium (RPMI 1640) (61870-127), fetal bovine serum (26400-036), penicillin-streptomycin (15140-122), and trypsin (25200-056) were obtained from Gibco (USA). A CCK-8 kit (C0037) was purchased from Biyuntian Biotechnology Research Institute (Shanghai, China). Antibodies for anti-Ki67 (ab15580), PCNA (ab18197), SOX2 (ab97959), OCT4 (ab18976), ASC (ab180799), Caspase-1 (ab207802), cleaved Caspase-1 (ab2302), GAPDH (ab37168) were purchased from Abcam (Abcam, USA).
Human esophageal squamous cell lines (TE-11) were obtained from the American Type Culture Collection (ATCC). The cells were cultured in RPMI 1640 medium supplemented with 10% fetal bovine serum and 1% penicillin-streptomycin and incubated at 37 °C in 5% CO2. The medium was changed every 24 h during the cultivation process, and cells were passaged at the rate of 1:2. Cells in the logarithmic growth phase were selected for further experimentation.
After incubation for 24 h, TE-11 cells were seeded into 96-well plates (100 µL/well), and different concentrations of BA (0.5, 1, 1.5, 3, 6, 15, 30, and 50 µM) and cisplatin (1, 2.5, 5, 7.5, 15, 30, 50, 100, and 200 µM) were added to the medium. Then, CCK-8 solution was added to the plate (10 µL/well), and the cells were incubated for 4 h, before the OD value was measured with a microplate reader at 450 nm.
Cell processing and grouping
TE-11 cells in the logarithmic growth phase were treated with 3 µM of BA (10) and 15 µM of cisplatin and randomly divided into four groups: the control group, the BA group, the cisplatin group, and the BA + cisplatin group.
Each group of cells was treated with lysis buffer containing protease inhibitor on ice. A BCA kit was used to measure the total protein concentration. An equal amount of protein samples was extracted from each group of cells and denatured at 100 °C for 5 min. Then, proteins were separated by running SDS-PAGE gel and then transferred to PVDF membranes. The membranes were blocked with 5% BSA at room temperature for 1–2 h, before incubation with primary antibody for Ki67, PCNA, SOX2, OCT4, ASC, cleaved Caspase-1 and Caspase-1 at 4 °C overnight. The next day, the membranes were washed, HRP-conjugated secondary antibody was added, and incubation took place at room temperature for 1 h. After washing completely, ECL reagent was added to detect the intensity of chemiluminescence, and the exposure was photographed on a gel imager. Relative protein expression was calculated using ImageJ software, according to the gray value, with GAPDH used as a loading control. The experiments were conducted independently in triplicate.
Establishment of a nude mouse xenograft model
Twenty male 7–8 weeks old Balb/c nude mice (weight: 20±2 g) were purchased from Beijing Weitong Lihua Animal Technology Co., Ltd. [license number: SCXK (Beijing) 2015-0001]. All of the mice were raised under specific-pathogen-free conditions. The mice were randomly divided into four groups: the control group, the BA group, the cisplatin group, and the BA + cisplatin group. TE-11 cells in the logarithmic growth phase were digested, and the cell concentration was adjusted to 2×107 cells per 0.1 mL. Then, 0.2 mL of the cell suspension was injected into the right armpit of the nude mice. After 15 days, when the tumor reached approximately 1 cm in diameter, the model was indicated to be successful and the follow-up experiments were performed. BA at a dose of 50 mg/kg was intragastrically administered to the BA group. The administration concentration refered to the previous literature (11). The cisplatin group was intraperitoneally injected with cisplatin at 10 mg/kg. The administration concentration refered to the previous literature (12). The BA + cisplatin group mice were intragastrically administered 50 mg/kg of BA and intraperitoneally injected with cisplatin 10 mg/kg. An equal volume of normal saline was performed by intragastrically and intraperitoneally injection for 30 days in Control group.
Tumor volume measurement
From day 5 after the model was constructed, the major and minor diameters of the tumors were measured and recorded every 3 days. The formula was: tumor volume = major diameter × minor diameter2 × 1/2.
The tumor tissue, embedded in paraffin was sectioned and routinely dewaxed. The tissue sections were incubated with 3% hydrogen peroxide for 10 minutes at room temperature, and then placed in a container containing citrate buffer solution for about 10 minutes at 95 °C, before being cooled at room temperature. Then, the sections were washed 3 times with PBS and blocked in 5% BSA solution at 37 °C for 30 min. Primary antibody was added, and the sections were incubated at 37 °C for 1 h. After washing 3 times with PBS, the sections were incubated with biotin-labeled antibody at 37 °C for 30 min. Next, the sections were once again washed 3 times with PBS and then incubated with SABC at 37 °C for 30 min. Finally, after washing with PBS 3 more times, the reaction was developed with diamino-benzidine (DAKO, Glostrup, Denmark). The sections were counterstained with hematoxylin (DAKO, Glostrup, Denmark), and then transparently dehydrated and mounted with neutral balsam. The proportion of positively stained cells was analyzed with ImageJ software.
Data analysis was carried out using SPSS 17.0 software, and the data were expressed as mean ± standard deviation. The statistical significance of difference in vitro and in vivo data was analyzed by t-test. P<0.05 considered to be statistically significant.
The cell survival rate of TE-11 cells was decreased after BA and cisplatin treatment
The cell viability of TE-11 cells treated with BA at different concentrations was detected by CCK-8. Compared with the 0.5 µM dose treatment, the cell survival rates at the doses of 6, 15, 30, and 50 µM were significantly reduced (P<0.05; Figure 1A). CCK-8 was used to detect the cell survival rates of TE-11 cells treated with cisplatin at different concentrations, and showed that the cell survival rate of the 30, 50, 100, and 200 µM doses was significantly decreased compared with the dose of 1 µM (P<0.05; Figure 1B). To further determine the optimal dosing concentration, the effect of co-administration of Betulinic Acid and Cisplatin on cell viability was examined. As shown in Figure 1C, 3 µM Betulinic Acid and 15 µM Cisplatin were the optimal combination and the combination was used in subsequent experiment.
Ki67 and PCNA protein levels in TE-11 cells treated with BA combined with cisplatin were downregulated
The Ki67 and PCNA protein expression levels in each group were detected by Western blotting. The protein levels of Ki67 and PCNA were significantly lower in the BA and cisplatin groups than in the control group (P<0.05). Ki67 and PCNA protein levels in the BA + cisplatin group were significantly lower than those in the BA group (P<0.05; Figure 2).
SOX2 and OCT4 protein levels and percentage of CD133+ cells in TE-11 cells treated with BA combined with cisplatin were downregulated

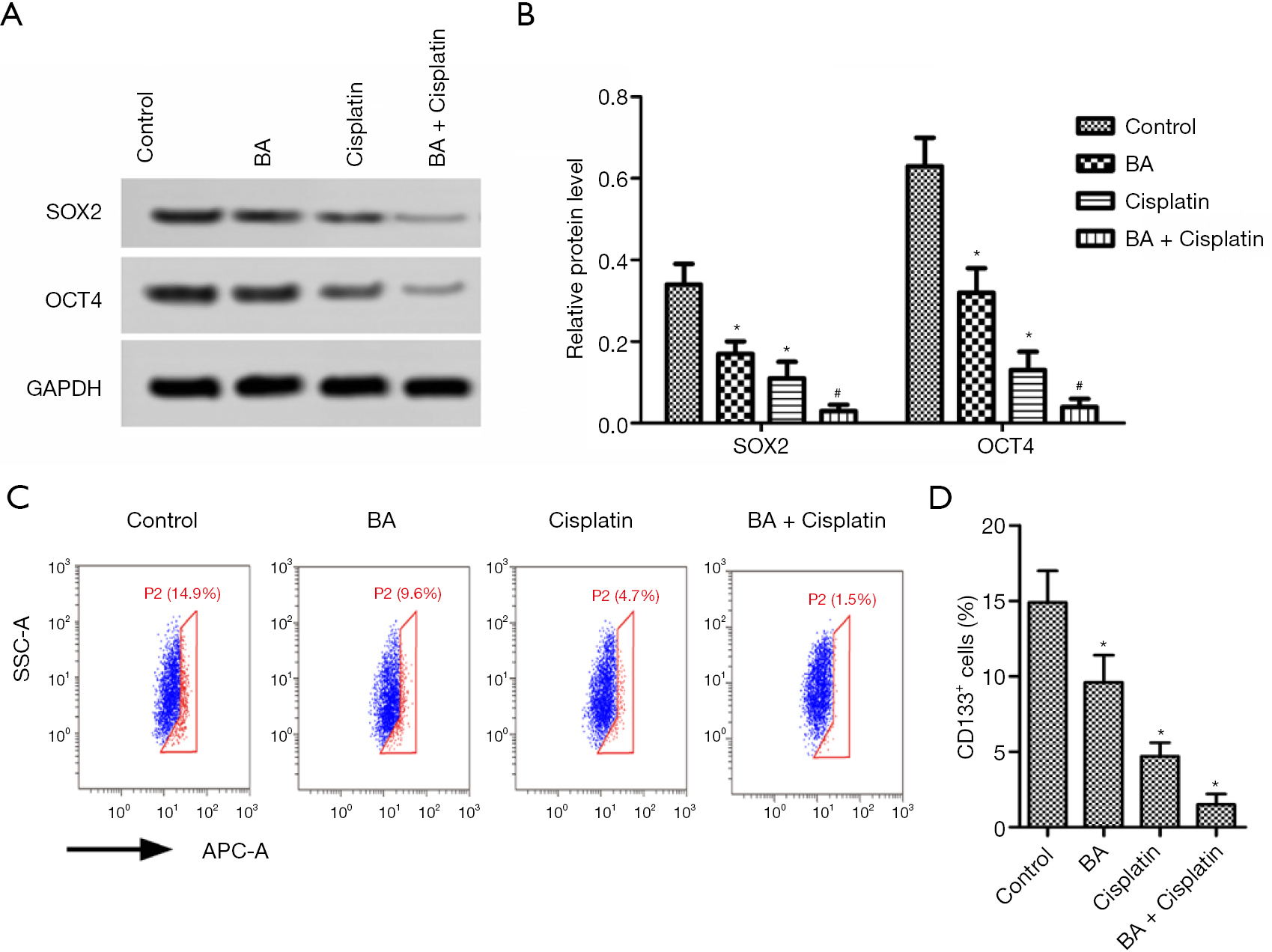

The protein expressions of SOX2 and OCT4 in each group were analyzed by Western blotting (Figure 3A). The SOX2 and OCT4 protein levels were significantly lower in the BA and cisplatin groups compared with the control group (P<0.05; Figure 3B). The levels of SOX2 and OCT4 were significantly lower in the BA + cisplatin group than in the BA group (P<0.05; Figure 3B). As shown in Figure 3C,D, percentage of CD133+ cells was decreased dramatically after treated by BA + cisplatin treatment (P<0.05).
ASC and Caspase-1 protein levels in TE-11 cells treated with BA combined with cisplatin were downregulated
The protein levels of ASC and Caspase-3 in each group were tested by Western blotting (Figure 4A). The BA and cisplatin groups had higher protein levels of ASC and Caspase-3 compared with the control group (P<0.05; Figure 4B). The levels of ASC and Caspase-3 in the BA + cisplatin group were significantly higher than those in the BA group (P<0.05; Figure 4B).
Effects of BA and cisplatin on esophageal cancer in a nude mouse xenograft model
The tumor volumes of each group of mice are shown in Figure 5A. Compared with the control group, the tumor volume in the BA and cisplatin groups was significantly decreased (P<0.05), and the levels of ASC and Caspase-1 in the BA + cisplatin group were significantly lower than those in the BA group (P<0.05). The expressions of Ki67 and Caspase-1 in esophageal cancer in nude mice were detected by immunohistochemistry (Figure 5B). It revealed that the Ki67 positive expression rate in the BA and cisplatin groups was significantly lower than that of the control group (P<0.05; Figure 5C), while the Caspase-1 positive expression rate was significantly higher than that of the control group (P<0.05; Figure 5D). Compared with the BA group, the Ki67 positive expression rate in the BA + cisplatin group was significantly reduced (P<0.05; Figure 5C), while the Caspase-1 positive expression rate was significantly increased (P<0.05; Figure 5D).
Esophageal cancer is a malignant tumor that carries a high mortality rate and poses a serious threat to the health and lives of patients, most of whom gradually develop resistance to radiotherapy and chemotherapy in the later stage of treatment. Considering the poor efficacy of single drugs in the treatment of esophageal cancer, the combination of two or three drugs is widely used in clinical practice. However, drug treatment often fails eventually, due to the development of drug resistance in tumor cells (13). Therefore, the study of the multidrug resistance mechanism of esophageal cancer and the discovery of effective drugs with low toxicity and side effects bear great significance.
Esophageal cancer cells are highly malignant and exhibit strong proliferative activity. Inhibiting the proliferation of esophageal cancer cells is an important way of treating esophageal cancer Ki67. As a nuclear antigen of proliferating cells, it can reflect tumor proliferative activity, along with other tumor molecular markers, which is of great significance for judging tumor malignancy and prognosis, and for guiding postoperative adjuvant therapy (14). Lei et al. found that Ki67 was highly expressed in esophageal cancer and closely related to its occurrence and development (15). Existing in both normal cells and tumor cells, proliferating cell nuclear antigen (PCNA) is closely related to DNA synthesis and is highly expressed due to the strong proliferation ability of cancer cells (16). Pan et al. reported that BA could inhibit the proliferation of pancreatic cancer cells (PANC-1) (17). In this study, it was indicated that BA combined with cisplatin could downregulate the expression levels of Ki67 and PCNA in TE-11 cells, and reduce the tumor volume and the expression rate of Ki67 in an esophageal cancer model in nude mice, which suggests that BA combined with cisplatin can inhibit the proliferation of TE-11 cells and tumor development in nude mice.
There are some special cell subpopulations in tumor cells which show similar characteristics to stem cells, with the abilities of self-renewal, strong proliferation, and differentiation (18). Tumor stem cells greatly impact tumor invasion, relapse, and metastasis (19). SOX2 and OCT4, as cancer stem cells markers, play a vital role in maintaining stem cell pluripotency and are involved in tumor cell processes, including proliferation, differentiation, invasion, metastasis, drug resistance, and relapse (20). This study showed that BA combined with cisplatin downregulated the expression of SOX2 and OCT4 proteins in TE-11 cells and decreased the percentage of CD133+ cells, which suggests that BA combined with cisplatin can inhibit the stem-like characteristics of TE-11 cells.
Pyroptosis, as a new type of cell death, is widely involved in tumor occurrence and development (21). Decrease of cell death is one of the most important mechanisms in chemotherapy resistance, and so some chemotherapeutic drugs can increase the sensitivity of tumor cells to chemotherapy by inducing pyroptosis (22). The pathogenesis of pyroptosis depends on the formation and activation of typical inflammasomes, which are a multimeric protein complex comprising NLR family proteins, ASC, and Caspase-1 precursors (23). This study found that BA combined with cisplatin could increase the expression of ASC and Caspase-1 protein in TE-11 cells as well as the positive expression rate of Caspase-1 of esophageal carcinoma xenografts in nude mice, which indicates that BA combined with cisplatin can inhibit pyroptosis in TE-11 cells.
In summary, this study revealed the effects of BA combined with cisplatin on TE-11 cells, including the inhibition of cell proliferation, dry-like stemness characteristics, and pyroptosis, which also inhibited tumor formation of esophageal cancer in a nude mouse xenograft model. Therefore, this study provides a new basis for the clinical application of BA combined with cisplatin in the treatment of esophageal cancer.
Funding: This study was supported by the Science and Technology Project of Henan province (No. 192102310103).
Data Sharing Statement: Available at http://dx.doi.org/10.21037/apm-20-867
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/apm-20-867). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was approved by Henan Medical College.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
